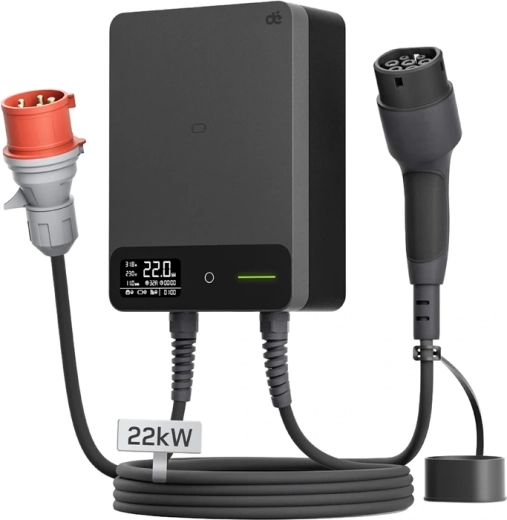

DEPOW Wallbox charging station provides up to 22 kW of power for electric vehicles with a Type 2 connector. Thanks to its 7 m cable, adjustable current from 6–32 A, Wi-Fi and Bluetooth control, and practical LCD display, it offers convenient, flexible, and safe home and business charging.
The DEPOW Wallbox is designed for efficient charging of electric vehicles with a Type 2 connector. It supports both single-phase and three-phase installations at 400 V AC and allows the charging current to be adjusted from 6 to 32 A according to the capabilities of the electrical installation. The integrated 7 m cable makes it easy to connect the vehicle, even when it is further away from the charging point.
Using the mobile app and Wi-Fi or Bluetooth connectivity, charging can be started or stopped remotely, monitored in real time, and the current can be adjusted. The app also provides charging scheduling and charging history. The current device status is clearly displayed on the LCD display and LED indicators.
Main benefits:
- up to 22 kW charging power for Type 2 connectors,
- adjustable current from 6–32 A,
- control and monitoring via the app,
- charging scheduling and charging session history,
- safety protections including a Type B residual-current device,
- IP54 protection rating, or IP55 with the Type 2 connector connected,
- suitable for indoor use and appropriately prepared outdoor areas.
Specifications
- Manufacturer
- DEPOW
- Model
- deWB22B07A_DL
- Maximum power
- 22 kW
- Cable length
- 7 m
- Voltage
- 400 V AC
- Frequency
- 50 Hz
- Installation type
- Single-phase / three-phase
- Current adjustment range
- 6–32 A
- Connector
- Type 2
- Connectivity
- Wi-Fi / Bluetooth
- Control
- App
- Display
- LCD
- App functions
- Remote start and stop, real-time monitoring, current adjustment, charging schedule, charging history
- Enclosure protection rating
- IP54
- Protection rating with connected Type 2 connector
- IP55
- Operating temperature
- −25 °C to 55 °C
- Storage temperature
- −40 °C to 80 °C
- Ambient humidity
- 5–95% relative humidity, non-condensing
- Control module dimensions
- 297 × 214 × 105 mm
- Standby power consumption
- Less than 5 W
- Total harmonic distortion (THD)
- ≤ 5%
- Residual-current device (RCD)
- Type B, 30 mA AC + 6 mA DC
- Protection
- Against overload, overvoltage, undervoltage, ground fault, and short circuit; grounding and temperature monitoring
- LED indicators
- Power, standby, charging, error
- Intended use
- Indoor / outdoor
