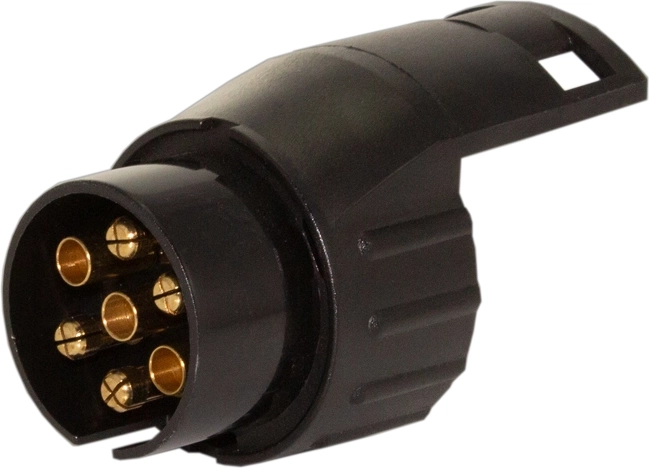

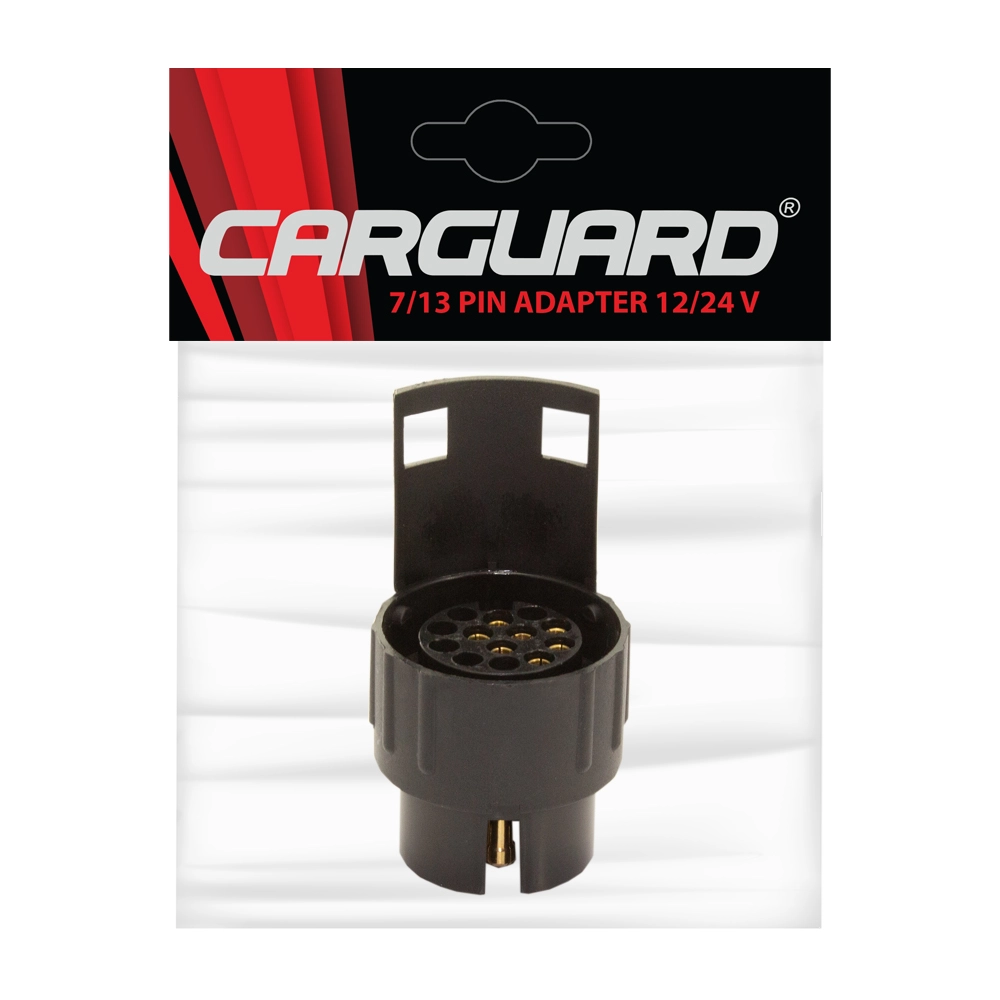

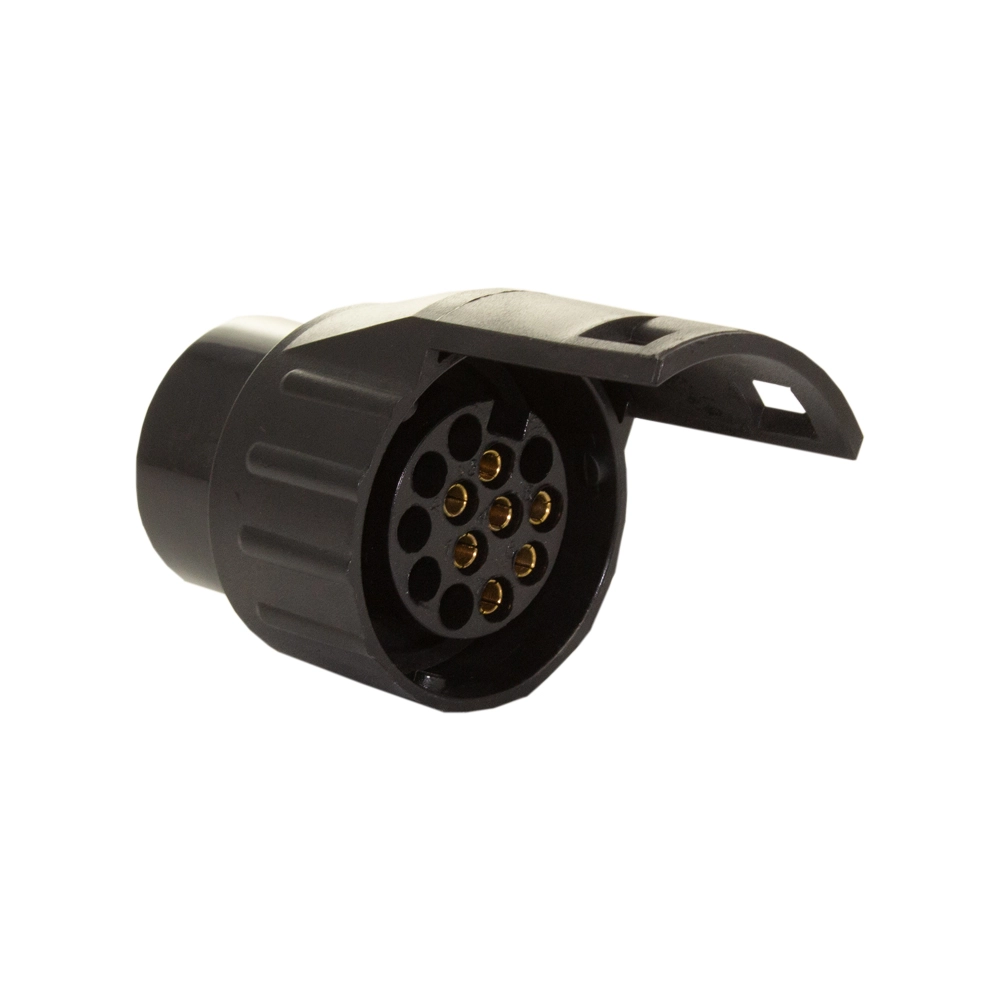

The practical 7/13-pin trailer connector adapter enables easy connection of the trailer lighting to the vehicle's electrical system. It features copper contacts, a robust black design, a spring-loaded cover and simple screw mounting for reliable use at 12/24 V.
This 7/13-pin trailer adapter is used to connect the trailer lights to the vehicle's electrical system. It is compatible with most vehicles and trailers, and its removable, installable connectors allow for easy connection.
The robust construction with copper connectors ensures reliable contact. The spring-loaded cover helps protect the connection from dirt and facilitates safe use. The design complies with the ISO 1724 standard.
- Copper connectors for reliable contact
- Robust design with a spring-loaded cover
- Screw fastening for cables
- Easy installation and connection
- Compatible with most cars and trailers
Specifications
- Type
- Trailer connector adapter
- Voltage
- 12/24 V
- Number of pins
- 7/13
- Standard
- ISO 1724
- Cable fastening
- Screw fastening
- Contact material
- Copper
- Color
- Black
- Pin designation / cable colors
- 1 – Yellow – left turn indicator
2 – Blue – fog lights
3 – White – ground
4 – Green – right turn indicator
5 – Brown – right lights
6 – Red – brake lights
7 – Black – left lights
8 – Gray – reversing light
9 – Brown/blue – power supply
10 – Brown/red – charging cable (connected filament)
11 – free
12 – free
13 – Black/white – ground
