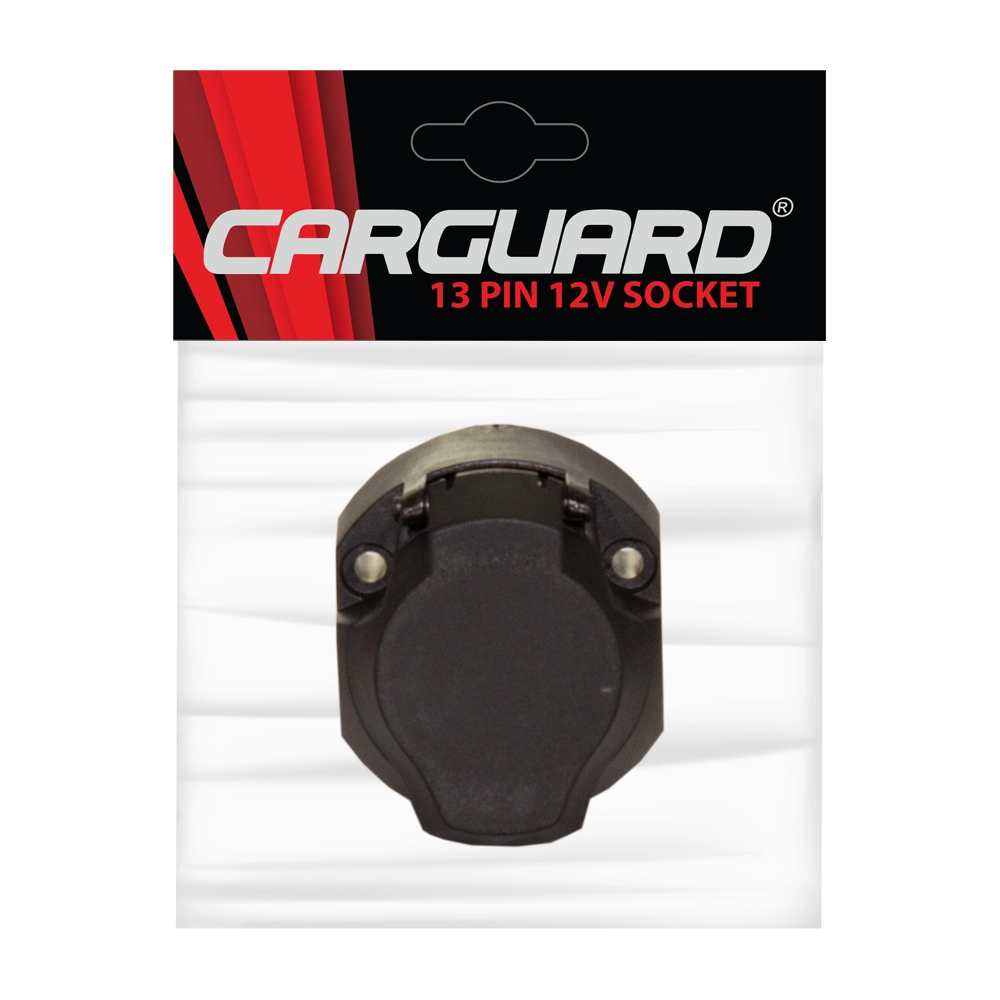

The robust 13-pin 12V trailer socket enables easy and reliable connection of trailer lighting to the vehicle's electrical system. It features copper connectors, high-quality contact, a spring-loaded cover, and screw-in cable connections.

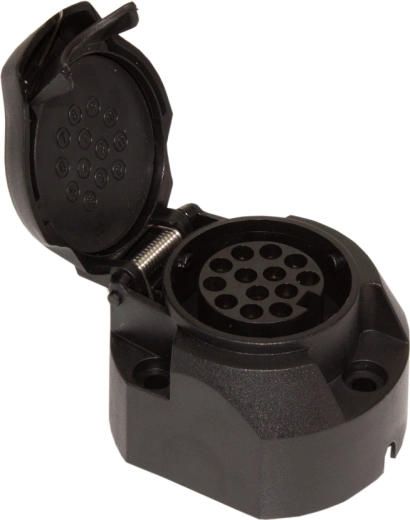

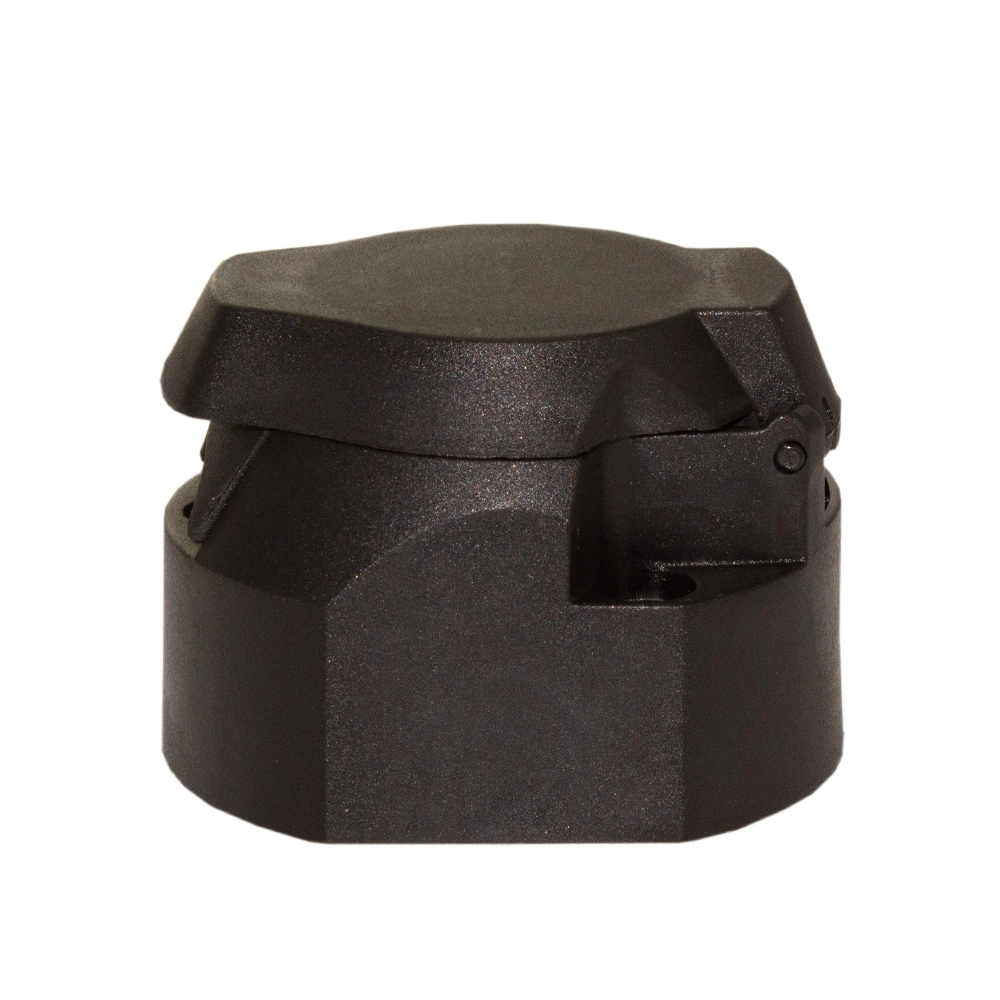

This 13-pin trailer connector socket is designed for connecting the lights and other electrical functions of a trailer to a car. The solid black design with a spring-loaded cover helps protect the contacts during normal use. Removable connectors make wiring and installation easier.
The socket is compatible with most cars and trailers and is manufactured in accordance with the ISO 1724 standard.
- Copper connectors for reliable contact
- Spring-loaded protective cover

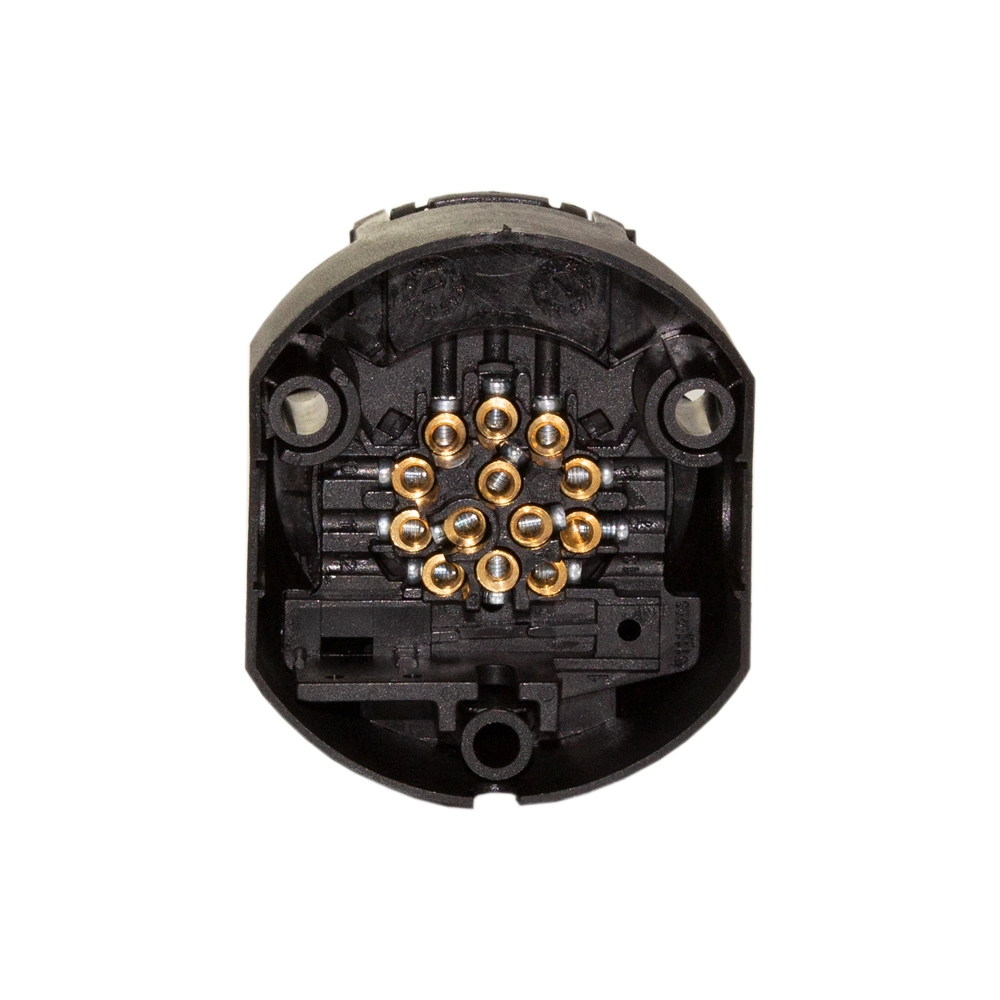

- Screw-in cable connections
- Mounted using 3 screws
- Easy installation
Specifications
- Type
- Trailer connector socket
- Voltage
- Max. 12 V
- Number of pins
- 13
- Standard
- ISO 1724
- Connector material
- Copper
- Cable connection
- Screw-in
- Mounting to bracket
- 3 screws (not included)
- Colour
- Black
- Pin designation / cable colours
- 1 – Yellow – left turn indicator
2 – Blue – fog lights
3 – White – ground
4 – Green – right turn indicator
5 – Brown – right lights
6 – Red – brake lights
7 – Black – left lights
8 – Grey – reversing light
9 – Brown/blue – power supply
10 – Brown/red – charging cable (connected filament)
11 – Unused
12 – Unused
13 – Black/white – ground
