Compact 12 V electric pump makes it easy to quickly, cleanly and efficiently transfer engine oil, diesel and coolant. The powerful 60 W motor, transparent hoses and power supply via battery clamps for connection to a car battery make it a practical helper for maintaining vehicles, work machinery and boats.

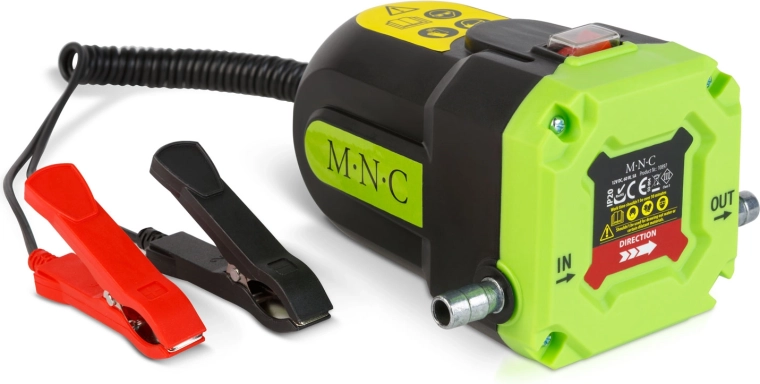

Power supply from a 12 V car battery
The battery clamps enable quick and secure connection of the pump to a 12 V car battery without the need for mains power.

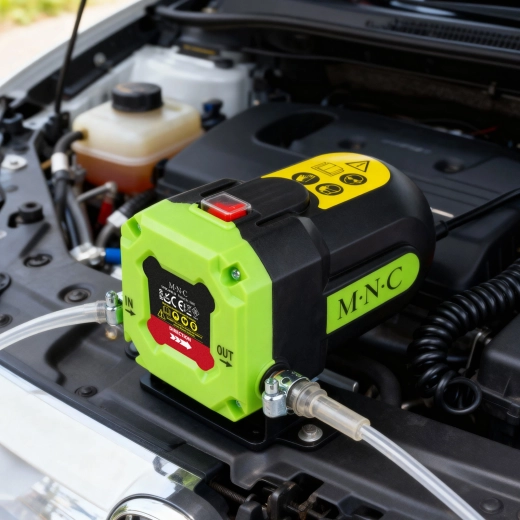

Clear flow direction and hose connections
The IN and OUT connections make it easier to correctly connect the suction and discharge hoses when transferring fluids.

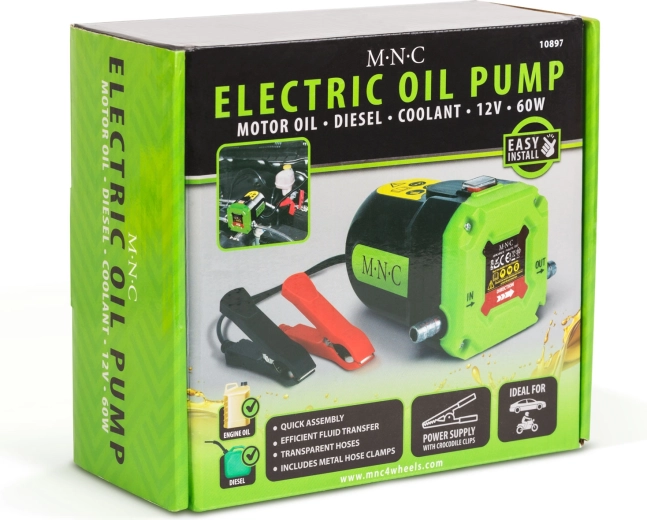

Compact maintenance helper
Its small size, 60 W power and practical accessories make this pump a suitable choice for the garage, workshop and service use.
The electric oil and fluid pump is designed for convenient transfer of non-flammable operating fluids. Thanks to its compact dimensions, it fits easily into a workshop, garage or tool case. Practical battery clamps provide connection to a 12 V car battery, while the transparent hoses allow you to monitor the fluid flow.
Practical equipment and advantages:
- quick and easy installation
- 12 V DC power supply via battery clamps
- powerful 60 W motor
- transparent suction and discharge hoses
- includes 2 metal hose clamps
- suitable for engine oil, diesel and coolant
The pump is not intended for petrol or other flammable or explosive fluids. The maximum recommended continuous operating time is 20 to 30 minutes.
Specifications
- Type
- Electric fluid pump
- Power supply
- 12 V DC
- Power consumption
- 60 W
- Current
- 5 A
- Noise level
- Approximately 70 dB
- Vibration
- < 2.5 m/s²
- Maximum engine oil flow rate
- 0.2 l/min, at a maximum oil temperature of 60 °C
- Maximum diesel flow rate
- 0.5 l/min
- Maximum pressure
- 0.8 MPa
- Maximum continuous operating time
- 20–30 minutes
- Power cable length
- Maximum 1.5 m, coiled cable
- Suction hose length
- 1.2 m
- Inner suction hose diameter
- Ø 3.7 mm
- Outer suction hose diameter
- Ø 6.1 mm
- Discharge hose length
- 1.5 m
- Inner discharge hose diameter
- Ø 9 mm
- Outer discharge hose diameter
- Ø 12.5 mm
- Hose colour
- Transparent
- Suitable fluids
- Engine oil, oil, diesel and coolant
- Unsuitable fluids
- Petrol and explosive fluids
- Pump body dimensions
- 133 × 85 × 125 mm
- Pump colour
- Black / green
- Number of included clamps
- 2 pcs
- Clamp size
- 20 mm
- Protection rating
- IP20
- Weight
- Approximately 670 g
