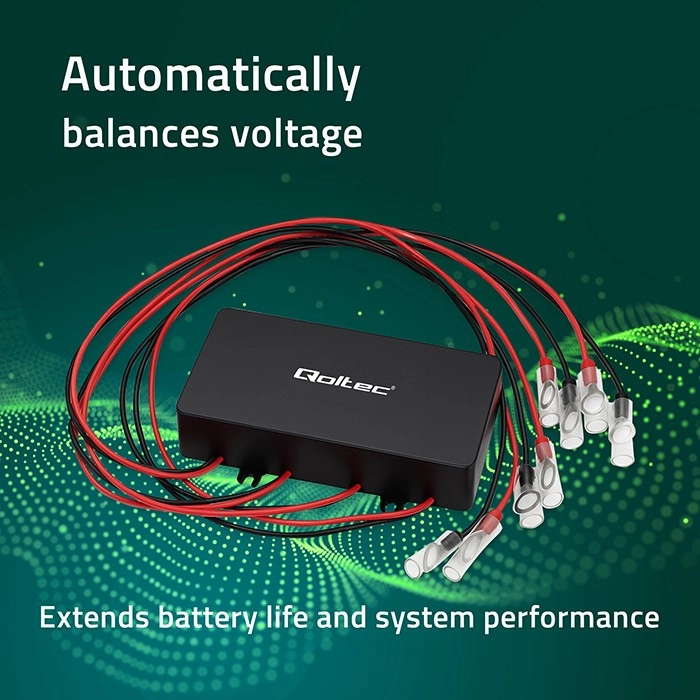

Protect your 48 V setup and extend battery life with an intelligent balancer that automatically equalizes voltage between batteries, operates fully autonomously without 230 V, and ensures stable and safe operation in a compact, rugged design. Max balancing current 10 A, LED indication, and reverse-polarity protection for quick, reliable installation.
Reliable voltage balancing is key to longer life and higher efficiency in 48 V battery systems. This balancer continuously monitors individual 12 V blocks and actively corrects differences up to 10 A, preventing overcharge and deep discharge of specific batteries. Thanks to powering directly from the battery bank, it requires no 230 V mains connection and runs fully autonomously.

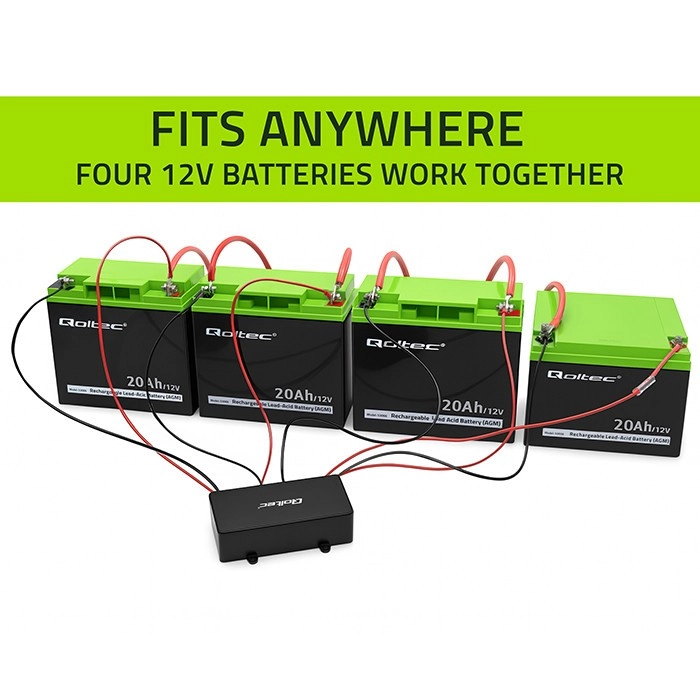

Installation is quick and safe: black lead to negative, red to the positive of the entire 48 V pack, and white to the midpoint between the batteries. LED indication confirms active operation. The device is compatible with AGM, GEL, LiFePO4 and other chemistries and suits motorhomes, boats, solar systems, EVs, industrial trucks, and backup power.
Main advantages:
- Automatic voltage balancing between 12 V batteries in 48 V systems
- Maximum balancing current 10 A for fast stabilization
- Reverse-polarity protection and operating LED indicators

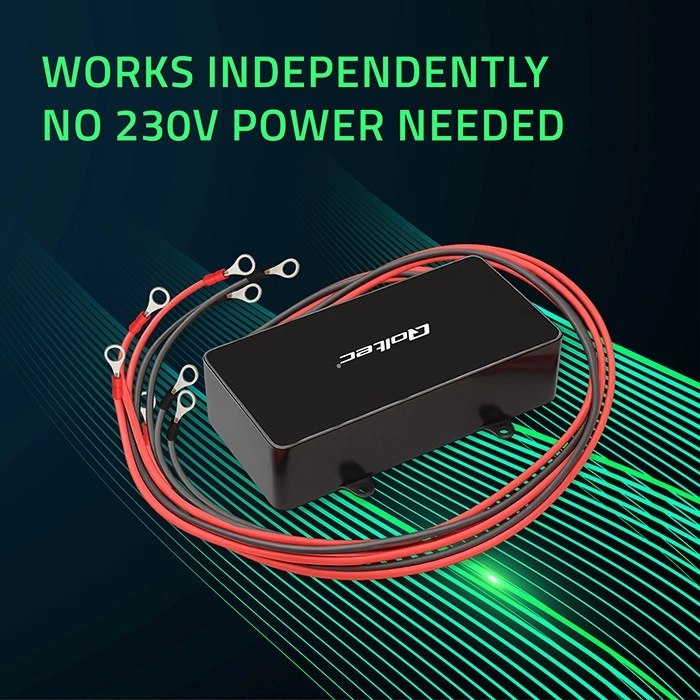

- Powered directly from the batteries – no 230 V needed
- Precise integrated circuits for minimal deviations
- Recommended battery capacity 20–200 Ah
- Universal use: RVs, boats, photovoltaics, EV, forklifts, UPS
Specifications
- System voltage
- 48 V (4 × 12 V in series)
- Function type
- Automatic voltage balancing between batteries
- Maximum balancing current
- 10 A
- Battery compatibility

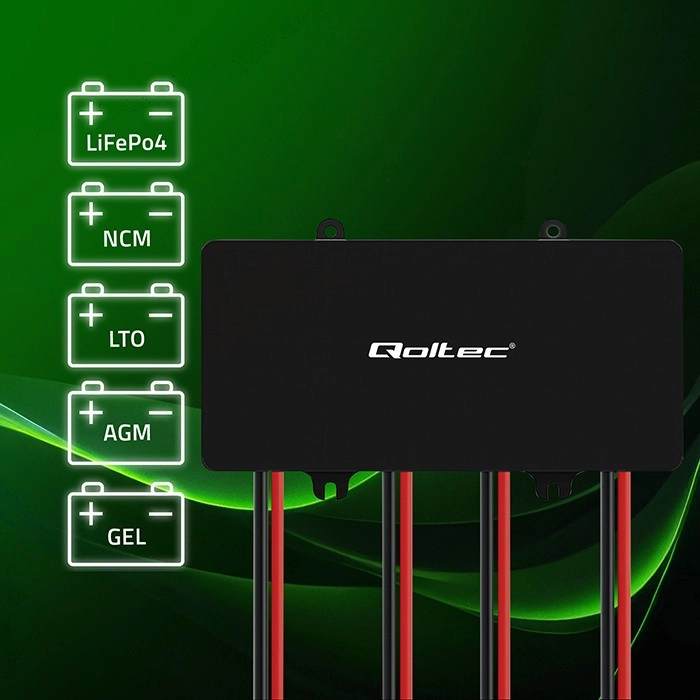

- AGM, GEL, LiFePO4 (LFP), VRLA, NiCd, NiMH, NCM, LTO
- Recommended battery capacity
- 20–200 Ah
- Protections
- Reverse-polarity protection
- Indication
- Operating LED indicators (A, B)
- Power supply
- Directly from the battery bank, no 230 V AC required
- Connection leads
- 16 AWG, length approx. 50 cm, M8 rings
- Wiring
- black = negative, red = +48 V, white = midpoint between batteries
- Design
- Compact, durable construction
